CV Joint Spacers

Manufacturer: CB Auto
SKU: CV Joint Spacers
£49.95
12mm plates for those running greater cambers
*
Availability: Please select required attribute(s)
+ -

Those running the 'Mk2' ball joint or custom arm options may run into issues with the length of the drive shaft placing strain on the CV or differential, especially when the suspension is under load.

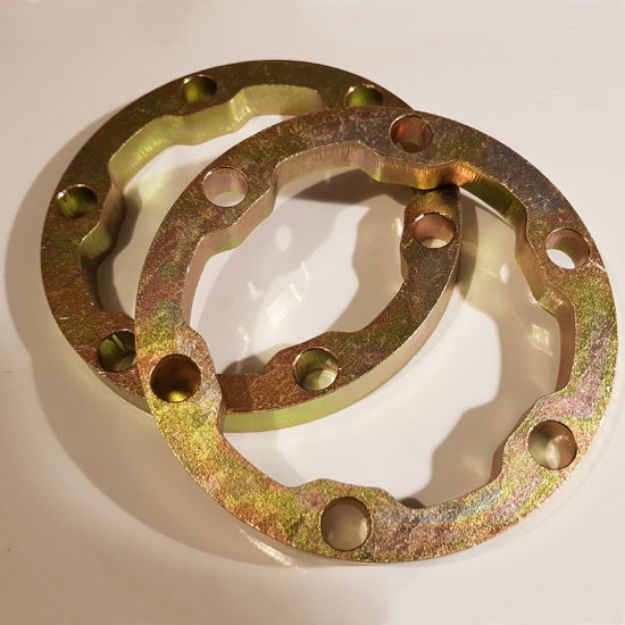

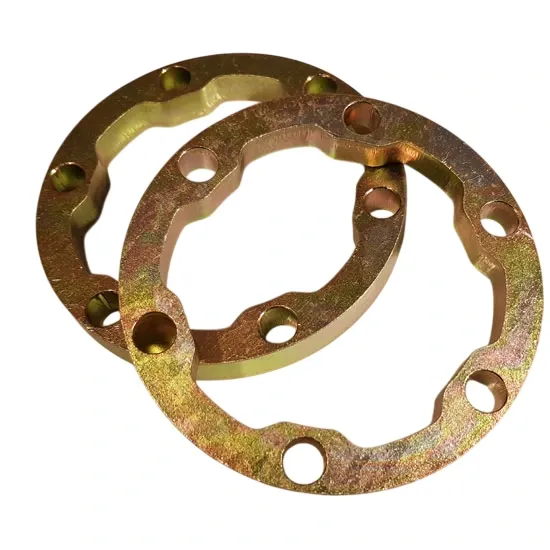

This pair of spacers are 12mm thick, zinc coated and also include the required 12 x 60mm 12.9 longer bolts, reducing any strain and so offering protection for those running over 3 degree of camber.

108mm: The PCD of the 6 bolt holes is 94mm and 108mm is the overall outside diameter of the spacer. (M10 x 60mm bolts)

100mm: The PCD of the 6 bolt holes is 86mm and 100mm is the overall outside diameter of the spacer. (M8 x 70mm bolts)

100mm: The PCD of the 6 bolt holes is 86mm and 100mm is the overall outside diameter of the spacer. (M10 x 60mm bolts)

Please check these will fit your vehicle before ordering.

Products specifications
Component Type Transmission
Write your own review Close Review Form
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
*
Description

Those running the 'Mk2' ball joint or custom arm options may run into issues with the length of the drive shaft placing strain on the CV or differential, especially when the suspension is under load.

This pair of spacers are 12mm thick, zinc coated and also include the required 12 x 60mm 12.9 longer bolts, reducing any strain and so offering protection for those running over 3 degree of camber.

108mm: The PCD of the 6 bolt holes is 94mm and 108mm is the overall outside diameter of the spacer. (M10 x 60mm bolts)

100mm: The PCD of the 6 bolt holes is 86mm and 100mm is the overall outside diameter of the spacer. (M8 x 70mm bolts)

100mm: The PCD of the 6 bolt holes is 86mm and 100mm is the overall outside diameter of the spacer. (M10 x 60mm bolts)

Please check these will fit your vehicle before ordering.

Products specifications
Component Type Transmission
